The construction industry’s relentless pursuit of efficiency has culminated in the development of the crawler concrete boom pump with integrated planetary mixer—a technological marvel that redefines on-site concrete operations. This sophisticated equipment represents the zenith of construction machinery innovation, combining the mobility of crawler tracks with the precision of planetary mixing technology and the reach of articulated booms. The integration of these systems creates a self-contained concrete production and placement unit that eliminates the logistical complexities associated with traditional ready-mix trucks and separate pumping equipment. For projects demanding high-volume concrete placement in challenging terrain or confined spaces, this equipment offers an unparalleled combination of versatility, productivity, and operational autonomy. The paradigm shift from fragmented concrete delivery to integrated on-site production and placement fundamentally transforms project timelines and resource allocation strategies.
Technical Specifications and Design Architecture

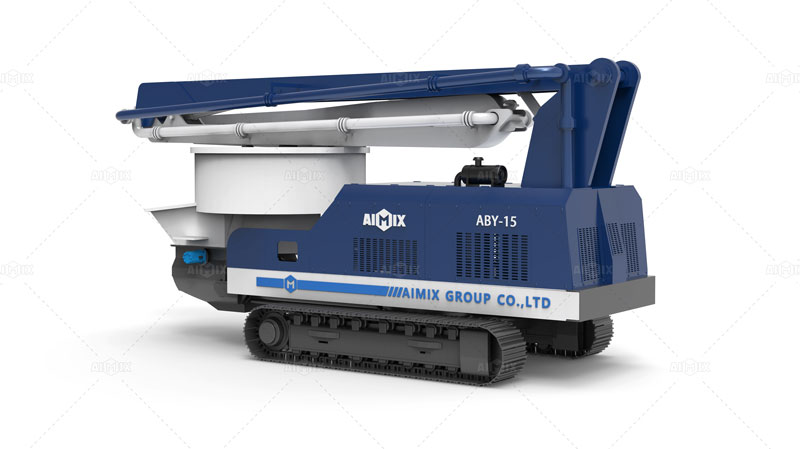

The crawler concrete boom pump with integrated planetary mixer embodies a sophisticated engineering design that prioritizes both performance and mobility. The crawler chassis provides exceptional terrain adaptability, allowing the unit to navigate soft ground, uneven surfaces, and confined spaces that would immobilize wheeled equipment. The all-terrain rubber tracks distribute ground pressure evenly, preventing sinking in swampy conditions while maintaining traction on steep inclines. The integrated planetary mixer represents the pinnacle of concrete mixing technology, featuring multiple mixing blades that orbit around a central axis while simultaneously rotating on their own axes. This dual-motion system achieves superior homogeneity and faster mixing cycles compared to conventional twin-shaft designs, typically reaching 85% of maximum mix quality within 15 seconds and 95% homogeneity in just 30 seconds.

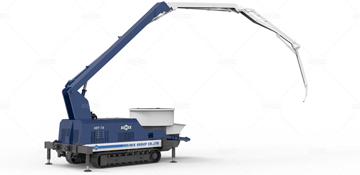

The articulated boom system extends the equipment’s reach capabilities, with models available in various configurations ranging from 15 to 62.5 meters in vertical height. The boom features full 360-degree rotation capability, allowing precise concrete placement without repositioning the entire machine. The hydraulic system powers all functions, from track movement and boom articulation to mixer operation and concrete pumping. This integrated hydraulic architecture ensures smooth, synchronized operation while minimizing energy consumption. The control system incorporates PLC-based automation with remote operation capabilities, enabling the operator to control the entire process from a safe distance while maintaining visibility of the placement area.
Performance Parameters
The equipment’s performance specifications demonstrate its capability to handle demanding construction schedules. The planetary mixer typically features a capacity of 500-800 liters per batch, with a theoretical mixing capacity of 30-35 cubic meters per hour. The mobile concrete pump system delivers a maximum pumping volume of 50-90 cubic meters per hour, depending on the model configuration. The maximum aggregate size handling capability is typically 40 mm, with recommended concrete slump ranging from 140-230 mm for optimal pumping performance. The crawler system provides a maximum traveling speed of 5 km/h, allowing the unit to reposition quickly between pour locations without requiring additional transport equipment.
Structural Dimensions and Weight Distribution
The compact design of the crawler concrete boom pump belies its substantial capabilities. The overall dimensions typically measure approximately 5600 mm in length, 2280 mm in width, and 3200 mm in height, allowing access through standard construction site gates and confined urban spaces. The self-weight ranges from 12 to 18 tons, with a total operating weight of up to 18 tons when fully loaded with materials. The crawler tracks feature a specification of 450x90x82 mm, providing the optimal balance between ground pressure distribution and maneuverability. The engine power typically ranges from 91 to 115 kW, providing sufficient power for simultaneous mixing, pumping, and crawler movement operations.
Operational Advantages and Productivity Benefits
The integration of mixing and pumping functions within a single mobile platform delivers transformative operational advantages that extend beyond mere equipment consolidation. The most immediate benefit is the dramatic acceleration of project timelines through the elimination of waiting times associated with truck scheduling and the slow placement of crane-and-bucket methods. The continuous flow from mixer to pump to placement means that large pours can be completed in a fraction of the time required by traditional methods. This temporal efficiency becomes a critical factor in meeting aggressive construction schedules, potentially reducing overall project duration by up to 30% on concrete-intensive projects.
Quality control represents another significant advantage of this integrated system. With an on-site planetary mixer, the project team regains absolute sovereignty over the concrete’s quality characteristics. The mix design can be adjusted in real-time based on ambient conditions, material properties, and placement requirements. The consistent output of the planetary mixer ensures uniform strength and workability throughout the entire pour, eliminating the variability that can occur with multiple ready-mix truck deliveries. The precision placement capability of the boom system drastically reduces material waste, as concrete is deposited exactly where needed with minimal spillage or over-pouring. This material saving, combined with the elimination of returned loads from ready-mix trucks, represents a substantial cost reduction that can offset the equipment investment.
Labor Optimization and Safety Enhancement
The operational consolidation achieved by the crawler concrete boom pump with integrated planetary mixer fundamentally transforms labor requirements on the construction site. The system requires a smaller, more specialized crew compared to traditional concrete placement methods, as the entire process from material batching to final placement is managed by a single operator using remote controls. This labor optimization frees up personnel for other critical tasks while reducing the overall manpower required for concrete operations. From a safety perspective, the benefits are profound. The small concrete pump truck allows for remote placement, keeping workers away from the edges of open formwork and reducing the physical strain associated with moving heavy hoses and equipment. The consolidated process creates a safer, less congested, and more manageable worksite environment, mitigating risk and lowering associated insurance costs.
Versatility Across Project Types
The crawler concrete boom pump with integrated planetary mixer demonstrates exceptional versatility across diverse construction scenarios. In high-rise building construction, the boom system enables direct, continuous pouring into core walls and structural elements, eliminating the need for tower cranes and reducing cycle times. For infrastructure projects such as bridges, tunnels, and dams, the crawler mobility allows access to remote or difficult-to-reach locations where traditional concrete delivery methods would be impractical. The equipment excels in urban construction sites with extremely tight access constraints, as the compact chassis and multi-mode smart outriggers allow fast setup in minimal space. The system’s ability to handle variable concrete grades from C20 to C50 with consistent quality makes it suitable for everything from foundation work to structural elements requiring high-strength concrete.
Applications and Use Cases
The crawler concrete boom pump with integrated planetary mixer finds application across a broad spectrum of construction projects, each benefiting from its unique combination of capabilities. In high-rise construction, the equipment’s ability to reach directly into core walls enables large-area continuous pours that can cut cycle time by over 30% compared to traditional methods. The system’s compact footprint and rapid setup make it ideal for complex urban sites in densely populated areas where space constraints and access limitations would otherwise delay concrete operations. For infrastructure projects, the crawler mobility allows the equipment to traverse challenging terrain and access remote locations that would be inaccessible to wheeled concrete pumps.
Photovoltaic pile foundation construction represents another ideal application, where the equipment can efficiently supply concrete to multiple pile locations without requiring constant repositioning of ready-mix trucks. Rural housing and agricultural infrastructure projects benefit from the system’s self-contained nature, eliminating the need for extensive site preparation and access road construction. Tunnel engineering applications leverage the equipment’s ability to operate in confined spaces while maintaining high-volume concrete production. Mining operations utilize the crawler system’s terrain adaptability to access extraction sites and processing facilities. Disaster recovery scenarios benefit from the equipment’s rapid deployment capability and ability to operate in compromised environments where traditional infrastructure may be damaged or inaccessible.
Comparative Analysis with Alternative Solutions
When compared to traditional concrete placement methods, the crawler concrete boom concrete pump mixer demonstrates clear advantages across multiple operational parameters. Compared to ready-mix trucks with separate pumping equipment, the integrated system eliminates the coordination challenges and waiting times associated with truck scheduling. The on-site mixing capability provides superior quality control and eliminates the risk of concrete setting during transport delays. Compared to stationary batching plants with truck-mounted pumps, the crawler system offers unparalleled mobility and site adaptability, allowing the equipment to follow the construction progress rather than requiring concrete to be transported over increasing distances. The integrated design also reduces the equipment footprint on site, freeing up valuable space for material storage and other construction activities.
Economic Considerations and Return on Investment
The economic justification for investing in a crawler concrete boom pump with integrated planetary mixer extends beyond the initial equipment cost. The reduction in labor requirements, elimination of ready-mix truck fees, and minimization of material waste contribute to significant operational cost savings over the equipment’s service life. The ability to accelerate project timelines can result in earlier project completion, reducing overhead costs and potentially enabling the contractor to take on additional projects. The equipment’s versatility across multiple project types enhances its utilization rate, spreading the capital investment across a broader revenue base. For contractors specializing in projects with challenging access conditions, high concrete volumes, or aggressive schedules, the return on investment can be achieved within a relatively short timeframe through a combination of direct cost savings and increased project throughput.
The crawler concrete boom pump with integrated planetary mixer represents a paradigm shift in construction methodology, offering a comprehensive solution that addresses the fundamental challenges of modern concrete operations. By combining mixing, pumping, and placement capabilities within a single mobile platform, this equipment delivers unprecedented efficiency, quality control, and operational flexibility. For contractors seeking to optimize their concrete operations, reduce project timelines, and enhance worksite safety, this integrated system provides a compelling value proposition that transcends traditional equipment boundaries. The convergence of advanced engineering, automation technology, and practical design considerations makes this equipment an indispensable partner for construction projects of all scales and complexities.
